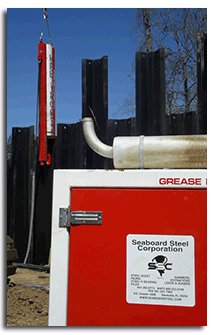

DAWSON CONSTRUCTION PLANT HYDRAULIC PILE HAMMERS
Sales or Rentals
Seaboard Steel carries a complete line of DCP Hydraulic Pile Hammers.
|
The DCP Hydraulic Pile Hammers deliver rapid and hard-hitting energy
to the pile driving job. These lightweight, efficient tools provide flexibility,
ease of use, and mobility. Each hammer offers one ram size with variable energy/blows per minute, interchangeable striking plates and sleeve sizes for steel pile and pipe piles, a quiet and clean diesel power unit, and hydraulic hose assembly.
|
 |
| MODEL |
HPH-1800 |
HPH-2400 |
HPH-4500 |
ENERGY
RATING |
(ft. lbs)
(kg-m) |
7,269 - 13,750
1,005 - 1,901 |
7,380 - 17,360
1,020 - 2,400 |
13,280 - 32,560
1,836 - 4,502 |
RAM
WEIGHT |
(lbs)
(kg) |
3,300
1,500
|
4,189
1,900 |
7,840
3,500 |
STROKES/
MINUTE |
(bpm)
|
80 - 120
|
80 - 120
|
80 - 120
|
WIDTH
OVERALL |
(in)
(mm) |
18.5
470
|
20.5
521 |
25.5
640 |
LENGTH
OVERALL |
(in)
(mm) |
199
5,046 |
208
5,274 |
183
4,640 |
WEIGHT
W/ LEGS & PLATE |
(lbs.)
(kg) |
9,350
4,250 |
15,400
7,000 |
23,700
10,750 |
| MODEL POWER PACK |
HPH-1800 |
HPH-2400 |
HPH-4500 |
DIESEL ENGINE
POWER |
(hp)
(kW) |
67
50 |
125
93
|
160
120 |
HYDRAULIC
SYSTEM PRESSURE
|
(psi)
(bar) |
3,300
228
|
3,335
230 |
3,626
250 |
OIL FLOW RATE
|
(gpm)
(lpm) |
28
105
|
40
150
|
61
230 |
| LENGTH |
(in)
(mm) |
75
1,902
|
112
2,845
|
130
3,300 |
| WIDTH |
(in)
(mm) |
55
1,395 |
51
1,295 |
53
1,340 |
HEIGHT |
(in)
(mm) |
70
1,775 |
89
2,261 |
89
2,261
|
| WEIGHT |
(lbs.)
(kg) |
4,410
2,005 |
6,615
3,007 |
7,040
3,200 |
|
Optional Accessories are available for Sale or Rent, such as Lead Systems & Accessories, and Drive Caps & Accessories.
Contact us with your specific
needs. |
|
 |
